Road (HR4 SRAM RED AXS)
Road (HR4 SRAM RED AXS)
Our Road model is engineered with speed and performance in mind — the only high-performance alloy frame in the market. This frame is complemented by world-class SRAM RED components with electronic shifting technology.
Components
Components

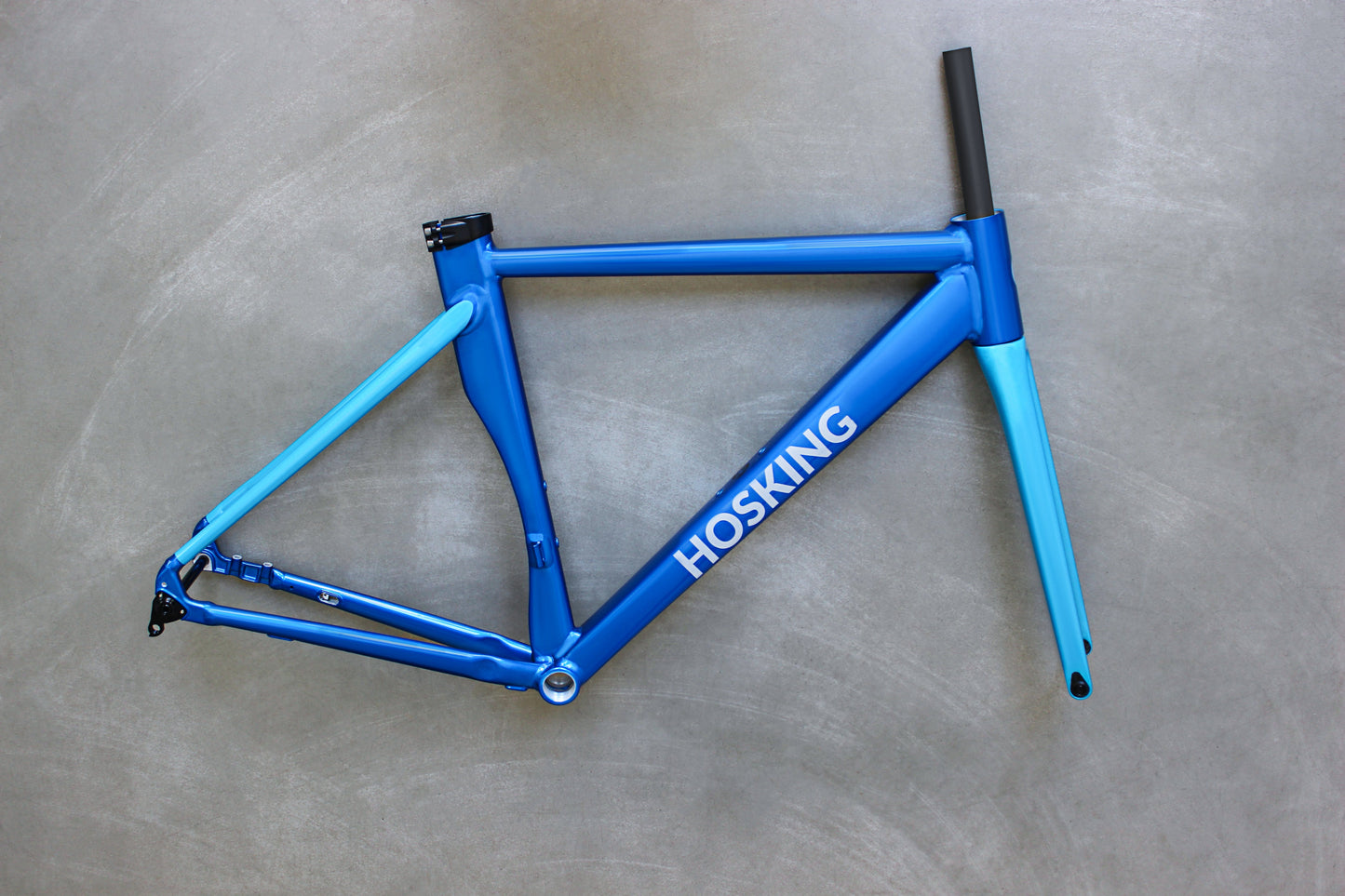

A light and durable Series 1 HOSKING Road Alloy frame with powerful flat-mount disc brakes and a wireless SRAM RED AXS electronic drivetrain for unrivalled shifting speed and precision.
Shipping
Shipping
Shipping costs, tailored to your location, will be factored into the price, ensuring you receive a seamless experience. Your satisfaction is our priority.
Why HOSKING
Why HOSKING
We are a small brand, but our ambition is unmatched.
This is the only brand founded by a female professional cyclist, and we are making sure everyone has access to world-class bikes.
Weight
Weight
The weight of every frame is slightly different. Depending on your choice of components and size, the bike weight will also vary.
The HOSKING HR4 SRAM RED AXS weighs in at 8.01kg. The same weight as the Cervélo S5.
Share
Sizing
Collapsible content
Geometry
45 | 48 | 51 | 54 | 57 | |
---|---|---|---|---|---|
Reach | 367 | 379 | 382 | 391 | |
Stack | 510 | 523 | 545 | 561 | |
Top Tube (effective) | 510 | 530 | 543 | 565 | |
Seat Tube C-T | 441 | 473 | 502.5 | 535 | |
Seat Tube C-C | 420 | 453 | 485 | ||
Head Angle | 71 | 72.1 | 73 | 74 | |
Seat Angle | 74.3 | 74.4 | 73.5 | 73.5 | |
Head Tube | 97.5 | 107.5 | 127 | 140 | |
Chainstay | 408 | 408 | 410 | 410 | |
Wheelbase | 974 | 977 | 980 | 983 | |
Front Centre | 577 | 579 | 580 | 595 | |
Standover | 705 | 743 | 760 | 790 | |
BB Drop | 72 | 70 | 70 | 70 | |
Fork Length (A2C) | 373.5 | 373.5 | 373.5 | 373.5 | |
Tire Width (max) | 32mm | 32mm | 32mm | 32mm | 32mm |
Stem Length | 90mm | 90mm | 90mm | 100mm | 110mm |
Crank Length | 170mm | 170mm | 170mm | 172.5mm | 175mm |
Handlebar Width | 380mm | 380mm | 380mm | 400mm | 420mm |
Specifications
-
Frame
Series 1 HOSKING Ultra-Light Road, Aluminium, Internal Cable Routing, Rack Mounts and Flat Mount Disc
-
Fork
Full Carbon with Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc
-
Handlebar
Metron 5D ACR, 400+10mm / Ø31.8mm / 3K Carbon finish / Black Decal
-
Rotors
DB Rotor Centrelock Paceline 160 Rounded
-
Saddle
Sella Shortfit 2.0, 155 x 255 mm, Black
-
Seat Post
Aero Black / Black Decal, AL-STEED
-
Crankset
SRAM RED D1 DUB with 50-37T
-
Bottom Bracket
SRAM BB DUB BSA 68 Road Wide
-
Chain
SRAM CN RED D1 12 Speed 120 Link
-
Cassette
SRAM D1 XPLR 10-33T, 12s, PG Splined 11, CS PG 1231
-
Front & Rear Derailleur
F: RED ETAP AXS D1 BRAZE ,2x12s
R: RED AXS D1 MAX 44T, 12S
-
Tire
KENDA 4TITUDE, 700x32c
-
Brake
ED RED AXS D1, Front and Rear Caliper, Left & Right Control, Front & RearShifter, Flat Mount 20mm Offset, Stealth-a-majig Disconnected, 1000mm hose
-
Headset
1.5" ACR/STD, Internal Alloy upper ACB / Internal Alloy lower ACB w/ACR Compression Device
Length:
44 + 48cm = 90mm
51cm = 100mm
54cm = 100mm
57cm = 110mm
-
Shifter
RED AXS D1, Front & Rear Caliper, Left & Right Control, Front & Rear Shifter, Flat Mount 20mm Offset, Stealth-a-majig Disconnected, 1000mm hose
Technical Information
-
Maximum Chain Ring Size
The frame accommodates a maximum chainring size of 54T, ensuring optimal compatibility and performance for your cycling needs.
-
Wheels & Axles
Metron 30 Clincher, Centerlock, Clincher Disc / 30mm / Front & Rear
100 x 12 x 1.5 Thru-Axle (F)
142 x 12 x 1.5 Thru Axle (R)
-
Headset Specifcations
1.5" ACR/STD, Internal Alloy upper ACB / Internal Alloy lower ACB w/ACR Compression Device
PC Straight Side Solid Headset Spacer w/ inside diameter rounded & chamfered to eliminate any sharp edge from contacting Steerer tube
World-class bikes, but affordable
HOSKING bikes are exceptionally priced because we are on a mission. After a remarkable 13-year career as a professional cyclist, our founder, Chloe, committed to a purpose: making world-class bikes accessible. Our dedication to this purpose is why we are able to offer top-quality bikes at prices our competitors won't match.
We believe in breaking down barriers and empowering cyclists to ride with professional-level equipment, without breaking the bank.
When you purchase a HOSKING you join us on our mission for accessible excellence in cycling.
More Information
Assembly Instructions
You will need to complete some minor final assembly before riding.
- 10-15min - You have assembled bikes before
- 15-25min - You are mechanically handy
- 30-40min - Never assembled a bike and working with tools isn't your thing
Please note, that all bicycles whether purchased online or instore, are mechanical devices and need to be serviced regularly to ensure proper functioning. New gear and brake cables, will stretch during the initial bed-in period, and will need to be adjusted after approximately 150-250km.
How Does My Bike Arrive?
HOSKING Bikes ensure that your bike is thoughtfully built and tuned by our mechanics, prior to being packaged and shipped to you. The packaging has been designed to ensure that your bike arrives safely and securely.
We ensure that there is the least amount of assembly required to get the bike ready to ride and provide all the tools to do so. You'll only need to do some minor assembly and setup, as well as possibly adding air to the tyres before you are able to get out and ride. Follow the assembly instructions in the section above.
Bike Geometry
45 | 48 | 51 | 54 | 57 | |
---|---|---|---|---|---|
Reach | 367 | 379 | 382 | 391 | |
Stack | 510 | 523 | 545 | 561 | |
Top Tube (effective) | 510 | 530 | 543 | 565 | |
Seat Tube C-T | 441 | 473 | 502.5 | 535 | |
Seat Tube C-C | 420 | 453 | 485 | ||
Head Angle | 71 | 72.1 | 73 | 74 | |
Seat Angle | 74.3 | 74.4 | 73.5 | 73.5 | |
Head Tube | 97.5 | 107.5 | 127 | 140 | |
Chainstay | 408 | 408 | 410 | 410 | |
Wheelbase | 974 | 977 | 980 | 983 | |
Front Centre | 577 | 579 | 580 | 595 | |
Standover | 705 | 743 | 760 | 790 | |
BB Drop | 72 | 70 | 70 | 70 | |
Fork Length (A2C) | 373.5 | 373.5 | 373.5 | 373.5 | |
Tire Width (max) | 32mm | 32mm | 32mm | 32mm | 32mm |
Stem Length | 90mm | 90mm | 90mm | 100mm | 110mm |
Crank Length | 170mm | 170mm | 170mm | 172.5mm | 175mm |
Handlebar Width | 380mm | 380mm | 380mm | 400mm | 420mm |
-
